UDI and serial number
Here you can find an overview of all devices regarding where the UDI (Unique Device Identification) is positioned and which part of the UDI contains the serial number. In general, the serial number consists of the last 6 digits of the UDI number. However, there are some notable device-specific differences in the layout and depiction of the UDI and serial number. These differences are illustrated below.
cosinuss° LabGateway
The UDI is located on the product label of the product packaging and can be found additionally on the bottom of the cosinuss° LabGateway receiver.
- The text marked in red is the serial number of the receiver.
| Number | Definition |
|---|---|
| 1 | Country prefix |
| 2 | Manufacturer number |
| 3 | Article number |
| 4 | Check digit |
| 5 | Packaging index |
| 6 | Typ |
| 7 | LOT |
| 8 | Serial number |
c-med° alpha
The UDI is located on the product label of the product packaging and can be found additionally on the charging box of the device.
- <font inherit/inherit;;#7f8c8d;;inherit>Under development: In the near future, we plan to print the serial number on the sensors themselves, as seen on the cosinuss °Two sensor below.</font>

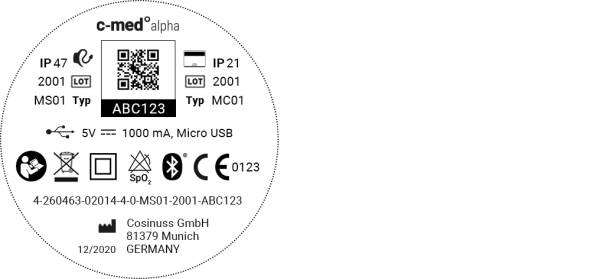

Charging box label and packaging label (new version)
| Part number | Identifier | Length | Description |
|---|---|---|---|
| GTIN (country prefix, manufacturer number, article number, check digit) | (1) | 13+1 | Contains information regarding the product and manufacture (+country) to identify the product worldwide |
| Manufacturing Date | (11) | 6 | Format: yymmdd |
| Type | (10) | 4 | Model of sensor device (e.g.: MS01) |
| LOT | (10) | 4 | Identification to track production batch |
| Serial number | (21) | 6 | Unique serial number |
Charging box label and packaging label (old version)
The first prototype version of the c-med used a different label. This old and prior version of the label is presented down below.
| Number | Definition |
|---|---|
| 1 | Country prefix |
| 2 | Manufacturer number |
| 3 | Article number |
| 4 | Check digit |
| 5 | Packaging index |
| 6 | Typ |
| 7 | LOT |
| 8 | Serial number |
cosinuss °Two, °One and °Temp
The UDI for these three devices is located on the product label of the device packaging.
- <font inherit/inherit;;#7f8c8d;;inherit>Under development: In the near future, we plan to print the serial number onto all of our sensors. This has already been implemented for the recently produced cosinuss° Two sensors, as seen below.</font>

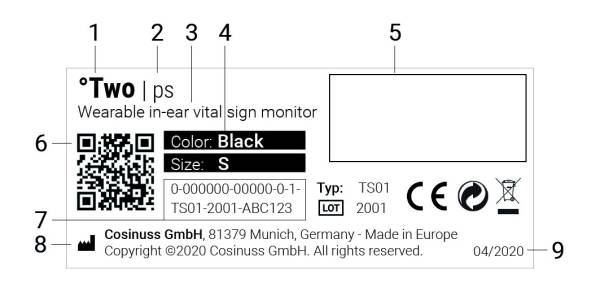

Packaging label
| Number | Definition |
|---|---|
| 1 | Product Name |
| 2 | Product Suffix |
| 3 | Product description |
| 4 | Product Color and Size of Sensor head |
| 5 | GTIN Number |
| 6 | QR Code of Device Management System |
| 7 | Unique Device Identification (UDI) |
| 8 | Manufacturer Information |
| 9 | Production date |
| Number | Definition |
|---|---|
| 1 | Country prefix |
| 2 | Manufacturer number |
| 3 | Article number |
| 4 | Check digit |
| 5 | Packaging index |
| 6 | Typ |
| 7 | LOT |
| 8 | Serial number |
Serial number on the sensor
degree°
The UDI is located on the product label of the product packaging and can be found additionally on the charging box of the device.
- <font inherit/inherit;;#7f8c8d;;inherit>Under development: In the near future, we plan to print the serial number on the sensors themselves, as seen on the cosinuss° Two sensor above.</font>

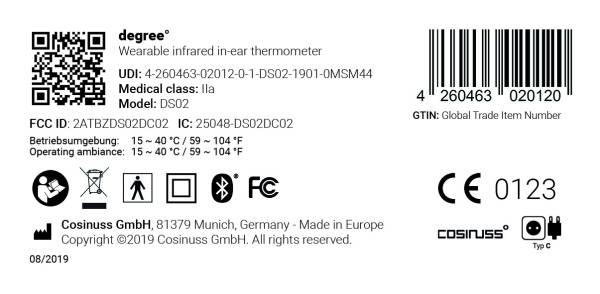

Packaging label
Charging box label
